3-in-1 Feeder for Thick Material

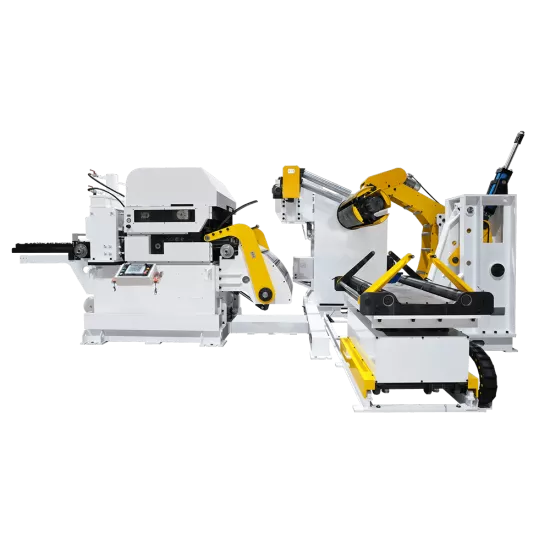

3-in-1 thick material stamping feeder (MAF6 Series)

The 3-in-1 thick material stamping feeder is an integrated solution combining uncoiling, straightening, and feeding for thick metal coils. Designed for heavy-duty applications, it ensures high precision, strength, and efficiency in material processing.

Specifications:

· Models: MAF6-400 to MAF6-1600
· Coil Width: 100–1600mm
· Thickness: 1.0–6.0mm
· Load Capacity: 3000–10000kg
· Feeding Speed: Up to 16 m/min
· Roller Diameter: 68–84mm
· Expansion: Hydraulic type
· Brake: Electromagnetic or disc brake
· Servo Motor: 4.4–11kW
· Power Supply: 380V, 50/60Hz, 3-phase

Inquire Now Next Product

Parameter

Model No.	MAF6-400	MAF6-600	MAF6-800	MAF6-1000	MAF6-1300	MAF6-1600
Coil Width(mm)	100~400	100~600	100-800	100~1000	100~1300	100~1600
Coil Thickness(mm)	1.0-6.0
Load Capacity(kg)	3000	5000	5000	7000/10000	10000/15000	10000/15000
Leveling Capacity(mm)	M. Thickness: 1.0 M. Width: 400	M. Thickness: 1.0 M. Width: 600	M. Thickness: 1.0 M. Width: 800	M. Thickness: 1.0 M. Width: 1000	M. Thickness: 1.0 M. Width: 1300	M. Thickness: 1.0 M. Width: 1600
	M. Thickness: 2.0 M. Width: 400	M. Thickness: 2.0 M. Width: 600	M. Thickness: 2.0 M. Width: 800	M. Thickness: 2.0 M. Width: 1000	M. Thickness: 2.0 M. Width: 1300	M. Thickness: 2.0 M. Width: 1600
	M. Thickness: 2.5 M. Width: 400	M. Thickness: 2.5 M. Width: 600	M. Thickness: 2.5 M. Width: 800	M. Thickness: 2.5 M. Width: 1000	M. Thickness: 2.5 M. Width: 1300	M. Thickness: 2.5 M. Width: 1600
			M. Thickness: 3.2 M. Width: 600	M. Thickness: 3.2 M. Width: 400	M. Thickness: 3.2 M. Width: 1300	M. Thickness: 3.2 M. Width: 1600
	M. Thickness: 4.0 M. Width: 180	M. Thickness: 4.0 M. Width: 200	M. Thickness: 4.0 M. Width: 230	M. Thickness: 4.0 M. Width: 300	M. Thickness: 4.0 M. Width: 650	M. Thickness: 4.0 M. Width: 720
	M. Thickness: 5.0 M. Width: 100	M. Thickness: 5.0 M. Width: 130	M. Thickness: 5.0 M. Width: 140	M. Thickness: 5.0 M. Width: 200	M. Thickness: 5.0 M. Width: 400	M. Thickness: 5.0 M. Width: 500
	M. Thickness: 6.0 M. Width: 80	M. Thickness: 6.0 M. Width: 100	M. Thickness: 6.0 M. Width: 120	M. Thickness: 6.0 M. Width: 180	M. Thickness: 6.0 M. Width: 300	M. Thickness: 6.0 M. Width: 350
Coil Inner Diameter(mm)	460-530
Coil Outer Diameter(mm)	1600
Max. Feeding Speed(m/min)	16
Leveling Roller Diameter(mm)	68				84
Qty of Leveling Rollers(pcs)	10(Up 5/Down 5)				10(Up 5/Down 5)
Feeding Roller Diameter(mm)	84				120
Qty of Feeding Rollers(pcs)	2
Feeding Type	Automatic pulling
Expansion Type	Hydraulic
Spindle Brake Type	Electromagnetic Brake	Disc Brake	Disc Brake	Disc Brake	Disc Brake	Disc Brake
Servo Motor Power(kw)	4.4	5.5	7.5	7.5	11	11
Uncoiler Motor Power(kw)	1.5	2.2	2.2	3.7/5.5	5.5/7.5	5.5/7.5
Spindle Reinforcement	None	1-Group	2-Group	2-Group	2-Group	2-Group
Power Supply	380V 50/60Hz 3-phase
Air Supply Pressure(Mpa)	0.6
Dimensions(LWH)	520031002400mm	520033002400mm	520035002400mm	520037002400mm	570053002800mm	570056002800mm

3-in-1 Thick Material Stamping Feeder— Product Description

Compact, heavy-duty and built for high-throughput stamping lines, the 3-in-1 thick material stamping feeder from FUXIN integrates uncoiler, straightener, and precision feeder into a single space-saving unit. Designed for thick coils and heavy gauge stampings, this turnkey thick material stamping feeder reduces handling steps, lowers labor input, and improves line uptime — the ideal front-end solution for automotive, appliance, and heavy-equipment production.

Key Features(Customizable):

· Heavy-Duty Design – Reinforced frame for thick coil processing.

· Wide Compatibility – Supports various coil sizes and materials.

· High Load Handling – Up to 15,000kg for demanding operations.

· Precision Leveling – 10 rollers ensure flat, uniform output.

· Efficient Feeding – Servo-driven system for smooth, accurate feeding.

· Safety Control – Reliable spindle brake options for safe operation.

· Automatic Feeding – Reduces manual work, boosts productivity.

· Hydraulic Expansion – Stable coil expansion and contraction.

· User-Friendly Interface – Simple setup and operation.

· Versatile Use – Ideal for automotive, construction, shipbuilding, and industrial manufacturing.

Advantages

· True 3-in-1 Integration (Uncoiler + Straightener + Feeder)
Combines three machines into one compact footprint to save factory floor space and simplify coil changeover.
· Built for Thick & High-Strength Materials
Engineered to handle heavy-gauge coils required for chassis, brackets, and structural parts, supporting material thickness up to 9 mm.
· Servo & PLC Control for Precision Feeding
Equipped with high-performance servo drives and PLC control systems to deliver high feeding accuracy and maintain stable strip tension during operation.
· Robust Mechanical Design
Heavy-duty decoiler, reinforced straightener rolls, and solid clamping systems ensure reliability when processing large coils and high-tensile steels.

Applications:

· Heavy machinery and structural component fabrication
· Shipbuilding and marine structures
· Industrial equipment and mining machinery production
· Infrastructure projects (bridges, tunnels, buildings)

Benefits for Your Production Line

· Higher Efficiency: Shorter coil changeover times and reduced manual intervention improve productivity and lower operating costs.
· Improved Product Quality: Precise alignment and tension control minimize material distortion and reduce scrap rates.
· Flexible Integration: Compatible with various stamping presses, robotic systems, and automatic transfer lines for medium-to-high tonnage production.

Whether you’re processing mild steel, high-strength alloys, or heavy-gauge coils, this feeder guarantees stable performance, reduced downtime, and superior productivity across every production cycle. It’s the smart choice for manufacturers seeking a reliable steel coil feeder solution that maximizes output and minimizes operational costs.
