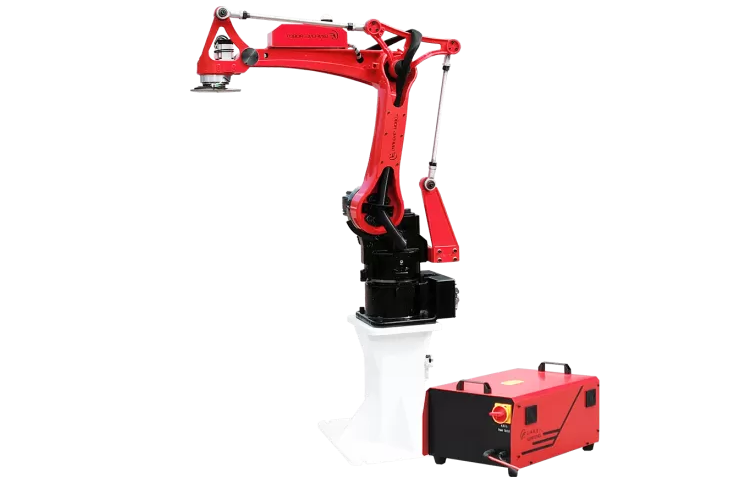

Robot joints are essential to the functionality, flexibility, and overall capability of robotic systems. From animatronics in the entertainment industry to industrial robotic arms in manufacturing facilities, robot joints enable precise motion and the execution of complex tasks.
Understanding the different types of robot joints and their specific applications is critical for anyone involved in the design, integration, or operation of robotic systems. This guide explores the various robot joint types, their functions, and how they are applied across different industries.
What Are Robot Joints?
Robot joints are mechanical components that allow movement and rotation within robotic systems, similar to human joints.
They enable different types of motion, such as rotation, sliding, and pivoting, allowing robots to perform tasks with accuracy and control.
Each joint type features a distinct design suited to specific functions, ranging from heavy-duty industrial operations to precision-oriented applications in fields such as surgery and art.
Types of Robot Joints
Robotic systems use various types of joints, each designed to provide specific ranges and types of motion. The primary joint types include:
1. Rotary Joints (Revolute Joints)
Rotary joints, also known as revolute joints, are among the most common in robotic arms.
They allow rotational movement around a single axis, similar to a door hinge. Rotary joints are essential in applications that require precise rotational motion, such as manufacturing, assembly, and welding.
2. Prismatic Joints (Sliding Joints)
Prismatic joints, also called sliding or linear joints, enable linear movement along a single axis.
These joints allow robots to extend or retract parts, similar to a telescope. Prismatic joints are particularly useful in applications requiring accurate linear positioning.
3. Cylindrical Joints
Cylindrical joints combine the features of rotary and prismatic joints, allowing both rotation and linear movement along a single axis.
This combination offers greater flexibility and is used in applications that demand both linear and rotational motion.
4. Spherical Joints
Spherical joints, similar to human shoulder joints, allow rotation around three perpendicular axes.
They provide a wide range of motion, making them suitable for tasks that require high flexibility and dexterity.
5. Planar Joints
Planar joints allow movement within a plane, providing two linear motions and one rotational motion in the same plane.
These joints are commonly used in robotic setups that operate over flat surfaces with limited movement requirements.
6. Universal Joints
Universal joints enable rotation around two perpendicular axes.
They are widely used in mechanical and robotic applications where flexibility is needed without full rotational freedom. Universal joints are particularly effective for transmitting torque between components at variable angles.
Advantages and applications of various types of robot joints
| Robotic Joint Type | Advantages | Applications | Example |
| Rotary Joints | Simple design, high precision, and efficiency in rotational movements. | Robotic arms, animatronics, and mechatronics applications. | Articulated robotic arms in automotive manufacturing use multiple rotary joints to move and position parts with precision |
| Prismatic Joints | Offers straightforward linear motion, and when combined with rotary joints, enables complex motion. | Common in robotic grippers, conveyor systems, and animatronic setups where sliding motion is needed. | Cartesian robots use prismatic joints to move in straight lines along the X, Y, or Z axes, perfect for pick-and-place tasks. |
| Cylindrical Joints | Provides two degrees of freedom (DOF), increasing functionality without complex mechanics. | Robotics where versatile movement is needed, such as inspection robots or robotic arms with variable reach requirements. | Cylindrical joints are common in assembly robots, allowing them to rotate around an axis and slide along it for enhanced flexibility. |
| Spherical Joints | Provides three degrees of freedom, ideal for highly flexible robots | Used in robotic arms for full rotational freedom, especially in tasks needing wide-reaching capabilities. | Humanoid robots and complex robotic arms use spherical joints for free movement in multiple directions. |
| Planar Joints | Simple design with sufficient flexibility for planar tasks. | Assembly line robots or robotic systems in planar workspaces. | Planar joints are seen in robots that work in confined spaces or planar work environments like inspection robots. |
| Universal Joints | Simple, robust design, offering flexible rotation in two directions. | Used in industrial robots, animatronics, and robot elbow joints where controlled rotation is essential. | Many industrial robotic arms utilize universal joints in their structures for controlled yet flexible motion. |
Components of a Robot Joint
Understanding the structure of a robot joint is essential to appreciate how different joint types operate. Each joint consists of multiple mechanical and electrical components that work together to enable precise and controlled movement.
Mechanical Components of a Robot Joint
Actuators
Actuators are the primary drivers of motion in robotic joints, converting energy—typically electrical, hydraulic, or pneumatic—into mechanical movement.
· Electric Motors: Servo motors are commonly used in robotic joints, providing precise control and high accuracy.
· Hydraulic and Pneumatic Actuators: These generate high force, making them suitable for heavy-duty industrial applications.
Gears and Gearboxes
Gears control the speed and torque of a joint’s movement by transmitting power from the actuator to the moving parts. They also adjust the applied force to ensure the joint operates at the desired speed and strength.
Common gear types include:
· Spur Gears: Simple and effective for basic power transmission.
· Harmonic Drives: Offer high precision and smooth, backlash-free movement.
· Planetary Gearboxes: Efficient for high-load applications, often used in robotic arms.
Bearings and Bushings
Bearings reduce friction and wear in rotating or sliding parts, ensuring smooth and efficient movement, especially under high-speed or heavy-load conditions.
Common types include:
· Ball Bearings: Used in joints requiring rotation.
· Linear Bearings: Used in prismatic joints for sliding motion.
· Roller Bearings: Provide high load capacity and durability for heavy-duty applications.
Structural Components
Structural parts include frames, links, and housings that provide stability and support to the joint. These components are typically made from lightweight yet strong materials such as aluminum, steel, or carbon fiber to balance durability with ease of movement.
Springs and Dampers
Springs and dampers absorb shocks and control movement, ensuring smoother operation. They are particularly important in applications with repetitive motions or variable forces. Springs can also help maintain tension or restore position when a force is applied.
How Does a Robot Joint Work?
In operation, the control system sends signals to the actuator based on sensor input or pre-programmed instructions.
The actuator then moves the joint—rotationally in a revolute joint or linearly in a prismatic joint—through the gearing system, which adjusts speed and torque as required. Sensors continuously provide feedback to the control system, enabling real-time adjustments and ensuring accurate, smooth motion.
This closed-loop process of signal transmission, movement, and feedback allows robotic joints to perform precise and repeatable actions across a variety of applications.
Whether it is a robotic arm assembling components on an industrial production line or an animatronic joint mimicking lifelike movements, each component within the joint contributes to efficient and precise operation.
What Do Robotic Joints Do?
The functions of robotic joints depend on their type and application. Key functions include:
Precision Movement: Robotic joints enable precise positioning, which is critical in applications such as electronics assembly and medical robotics.
Increased Range of Motion: Joints allow complex, multidirectional movements, enabling robots to operate effectively in three-dimensional spaces.
Efficient Task Execution: Selecting the appropriate joint enhances a robot's efficiency, allowing tasks to be performed faster and with greater accuracy.
Weight Bearing and Load Distribution: Certain joints, such as prismatic and cylindrical joints, can support significant loads, making them suitable for industrial robots that handle heavy objects.
