CNC machining is widely used in metal parts, automotive components, precision hardware, medical devices, electronics, molds, and industrial equipment manufacturing. As production requirements become more demanding, many workshops are looking for ways to improve machine utilization, reduce manual handling, and keep machining quality stable across different shifts.

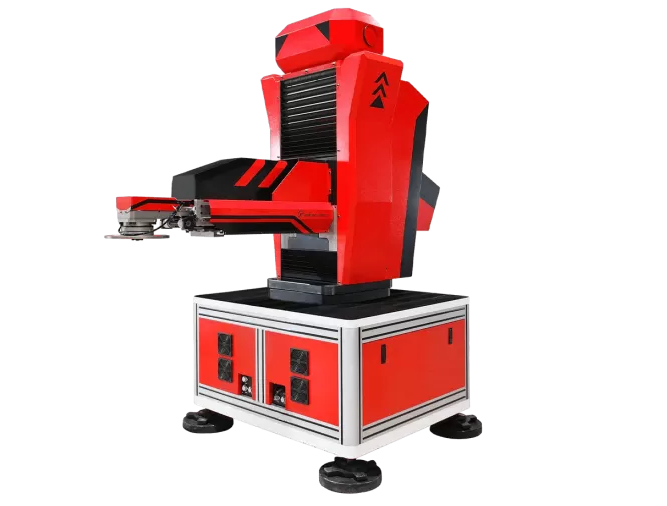

One practical solution is to use a CNC robot arm for machine tending. A CNC robot arm can automatically load raw parts, unload finished parts, transfer workpieces, assist with positioning, and connect CNC machines with other production steps. For manufacturers that run repetitive machining processes, robotic CNC automation can make production more continuous, safer, and easier to manage.
However, automating CNC machines is not simply placing a robot beside the equipment. Before starting the project, manufacturers should consider three important factors: the production bottleneck, the robot configuration, and the integration details.
1. Understand the Bottlenecks in Manual CNC Machine Tending
In many machining workshops, the CNC machine itself is capable of stable cutting, but the overall production rhythm is limited by manual loading and unloading. After one machining cycle is completed, the operator needs to open the door, remove the finished workpiece, clean chips if necessary, place the next blank part, confirm clamping, close the door, and start the next cycle.
This process may look simple, but repeated manual operation can create several problems:
· Waiting time between machining cycles
· Inconsistent part loading position
· Operator fatigue during long shifts
· Difficulty maintaining night-shift production
· Higher safety risks when handling sharp, oily, hot, or heavy parts
· Unstable production rhythm when one worker manages several CNC machines
· Lower efficiency in repetitive batch production
A CNC robot arm helps solve these issues by performing machine tending tasks with consistent movement and timing. It can pick raw materials from trays, conveyors, loading racks, or positioning fixtures, place them accurately into the CNC machine, remove finished parts after machining, and transfer them to the next station.
Before choosing a CNC robot arm, manufacturers should first analyze their current machining process. Important details include part size, part weight, machining cycle time, manual loading time, fixture type, CNC door structure, daily output requirement, and product changeover frequency. These details determine whether the automation system should be designed for one CNC machine, several CNC machines, or a complete production cell.
2. Choose the Right CNC Robot Arm and End-of-Arm Tooling
The performance of a CNC automation system depends heavily on whether the robot arm is correctly matched with the application. Payload, reach, repeatability, gripper design, safety protection, and communication capability should all be considered.
Payload is one of the first factors. The robot must carry not only the workpiece, but also the end-of-arm tooling. If the workpiece is heavy or the gripper is complex, enough payload margin is needed to ensure stable long-term operation.
Reach is also important. The CNC robot arm must be able to access the loading area, CNC chuck or fixture, machine door opening, finished part area, and any additional stations such as cleaning, inspection, marking, or deburring. If the reach is too short, the layout may need extra equipment such as a linear rail. If the reach is too large, the automation cell may occupy unnecessary floor space.
End-of-arm tooling is often the key to successful CNC machine tending. Different parts require different gripping methods, such as pneumatic grippers, electric grippers, vacuum tools, magnetic grippers, or custom-shaped fingers. For some applications, a dual-gripper design is useful because the robot can remove a finished part and load a new blank during the same machine-door opening. This reduces non-cutting time and keeps the machining process more continuous.
For oily, wet, or high-chip environments, the gripper must be designed with enough holding force and contamination resistance. For precision-machined parts, the gripping surface should avoid scratches, deformation, or positioning damage. If the workpieces vary in shape, flexible tooling or quick-change grippers may be required.
A suitable CNC robot arm should also support easy programming and fast product changeover. In many machining workshops, the robot must handle different part models, small batches, or frequent order changes. Simple teaching, adjustable pickup positions, and reusable programs can make robotic CNC automation easier for operators to manage.
3. Plan the Integration with CNC Machines and Workshop Workflow
A CNC robot arm must work smoothly with the CNC machine, fixture, loading system, safety system, and production process. Good integration is what turns a robot into a real automation solution.
The integration plan should answer several practical questions:
· How will raw parts be supplied to the robot?
· Will the robot pick parts from trays, conveyors, bins, or fixtures?
· How will the CNC machine door open and close?
· How will the robot communicate with the CNC controller?
· How will the chuck, vise, or fixture confirm clamping?
· Is chip cleaning or air blowing required before loading?
· Where will finished parts be placed after unloading?
· Does the process require inspection, marking, washing, or deburring?
· How will operators safely enter the cell for maintenance or tool changes?
Communication between the robot and CNC machine is especially important. The robot needs signals to confirm that the door is open, the spindle has stopped, the fixture is ready, the part is clamped, and the machining cycle can begin. Sensors can also be used to confirm whether a part has been picked, loaded, or removed correctly.
Safety should be planned from the beginning. CNC machining involves rotating spindles, moving doors, cutting tools, coolant, chips, and heavy workpieces. Depending on the application, the automation cell may require safety fences, area scanners, emergency stops, interlocks, or light curtains. The goal is to protect workers while still keeping the system convenient for operation and maintenance.
Workshop layout also matters. A CNC robot arm should not block tool changes, machine maintenance, coolant access, or manual operation when needed. The loading area should be easy to refill, and finished parts should be organized for the next process. A compact and practical layout helps the automation system fit into real production instead of becoming difficult to use.
Common CNC Robot Arm Applications
CNC robot arms are commonly used for turning, milling, drilling, tapping, grinding, deburring, and secondary handling. They are suitable for machining parts such as shafts, sleeves, flanges, housings, hydraulic components, aluminum blocks, valve parts, automotive parts, and precision hardware.
In CNC turning, the robot usually loads a blank into the chuck, waits for the machining cycle, removes the finished part, and places it in a collection tray. In CNC milling, the robot may place the workpiece into a vise or fixture and transfer it to cleaning or inspection after machining.
For batch production, fixed trays or positioning pallets are often used. For more flexible production, vision systems can help identify part location and orientation. For heavier components, robotic loading reduces the physical burden on operators and improves handling safety.
Conclusion
Automating CNC machines with a CNC robot arm can help manufacturers improve production continuity, reduce repetitive manual work, and make machining processes more stable. The most important point is to design the automation around the real production process, not only around the robot itself.
Before starting CNC robotic automation, manufacturers should clearly understand the current bottleneck, select the right robot arm and gripper configuration, and plan the integration with CNC machines, fixtures, safety systems, and workshop workflow. With the right setup, a CNC robot arm can become a reliable part of modern machining production, supporting more stable output, safer operation, and better flexibility for different machining tasks.
