Automatic Blank Feeder vs Manual Loading: Which Is Better for Stamping Production?

Material loading may appear to be a simple step in metal stamping, but it has a direct impact on press utilization, labor requirements, production safety, part quality, and total manufacturing cost. When a factory plans to upgrade an existing press line, one common question is whether to continue loading individual blanks manually or invest in an automatic blank feeding system.

The right choice depends on production volume, blank dimensions, material weight, press speed, product variety, and the factory’s long-term automation goals. Manual loading can remain practical for prototypes, low-volume orders, and frequently changing products. However, for repetitive or high-volume stamping, an automatic blank feeder can deliver significant advantages in speed, consistency, safety, and labor utilization.

This comparison of automatic blank feeder vs manual loading examines the main factors stamping manufacturers should consider before making an investment decision.

What Is Manual Blank Loading?

Manual loading means that an operator picks up each metal blank, separates it from the stack, confirms its orientation, and places it into the die or press feeding position. Depending on the application, the operator may also apply lubricant, align the blank against positioning stops, and remove the stamped part after each cycle.

This method has a low initial equipment cost and is relatively easy to introduce. It is often used for:

• ◆  Prototype and trial production

• ◆  Small production batches

• ◆  Products with frequent size changes

• ◆  Presses with long cycle times

• ◆  Lightweight blanks that are easy to handle

• ◆  Operations where automation integration is not yet economically justified

The main limitation is that the production cycle depends heavily on the operator. Fatigue, differences in working habits, incorrect positioning, difficulty separating blanks, and inconsistent loading speed can all affect output.

What Is an Automatic Blank Feeder?

An automatic blank feeder takes blanks from a stack or material station and delivers them to the required position in synchronization with the stamping press. Depending on the system design, it may use vacuum cups, magnetic separation, air blowing, scraping, or other separation methods to pick up one blank at a time.

A complete automatic feeding system may include:

• ◆  One or more blank storage stations

• ◆  A hydraulic or servo-controlled lifting mechanism

• ◆  Automatic sheet separation

• ◆  Dual-sheet detection

• ◆  A feeding arm or transfer mechanism

• ◆  Blank positioning and alignment devices

• ◆  PLC control

• ◆  Press communication and safety interlocks

• ◆  Optional oiling or surface treatment devices

The purpose is not only to replace manual handling. A properly configured feeder establishes a repeatable material-loading process that can be matched to the press cycle.

Automatic Blank Feeder vs Manual Loading: Quick Comparison

1. Labor Cost and Workforce Utilization

Labor cost is one of the clearest differences between manual loading and automatic feeding.

A manually loaded stamping press normally requires an operator to remain at the loading position throughout the shift. For large, heavy, sharp-edged, or oily blanks, two people or additional lifting devices may be needed. The factory therefore continues to pay for repetitive material-handling labor every time the press operates.

An automatic blank feeder changes the operator’s role. Instead of loading every blank, the operator can prepare blank stacks, monitor multiple machines, conduct quality inspections, replenish material, and respond to alarms. Automation does not necessarily eliminate the need for personnel, but it can reduce the amount of low-value repetitive handling.

When comparing labor cost, purchasers should calculate more than the hourly wage. The analysis should also include:

• ◆  Overtime and shift premiums

• ◆  Recruitment and training costs

• ◆  Employee turnover

• ◆  Absence-related production interruptions

• ◆  The number of operators required per shift

• ◆  The possibility of assigning operators to higher-value work

• ◆  Additional labor required as production volume increases

For factories operating two or three shifts, the labor-saving potential of automation becomes more significant because the feeder can deliver benefits during every production shift.

2. Production Cycle and Press Utilization

A stamping press can only produce parts when blanks arrive at the die correctly and on time. If the operator cannot maintain the required loading rhythm, the press waits between cycles.

Manual loading speed can vary during a shift. An operator may work quickly at the beginning but slow down because of fatigue, repetitive motion, difficult sheet separation, material replenishment, or the need to correct blank orientation. These small delays reduce the number of effective strokes per hour.

An automatic blank feeder follows a programmed feeding cycle. Servo-driven motion, PLC control, and communication with the press help maintain consistent timing. This makes the production rate more predictable and allows the feeding process to be configured around the press stroke, blank travel distance, and die requirements.

However, the feeder must be selected correctly. Installing a machine with insufficient feed speed will only move the bottleneck from the operator to the automation system. Buyers should therefore provide the feeder supplier with:

• Required parts per minute

• ◆  Current and target press speed

• ◆  Pick-up and placement distance

• ◆  Blank size and weight

• ◆  Stack height

• ◆  Die loading position

• ◆  Required positioning accuracy

• ◆  Time allowed for material-station changeover

The objective is not simply to purchase the fastest feeder. It is to build a balanced production cell in which the feeder, press, die, safety system, and downstream handling equipment work at compatible speeds.

3. Operator Safety

Manual blank loading places the operator close to the press and requires repeated contact with sheet metal. Potential hazards include sharp edges, heavy lifting, pinching points, repetitive motion, dropped blanks, and accidental access to the die area.

An automatic blank feeder can reduce direct operator exposure by moving routine pick-and-place operations away from the worker. This is particularly valuable when blanks are large, heavy, oily, hot, sharp, or difficult to separate.

Automation alone does not guarantee a safe line. A complete system should be designed with appropriate guarding, interlocked access doors, light curtains where applicable, emergency stops, safe press communication, alarm handling, and lockout procedures. Operators must also be trained to clear misfeeds and conduct maintenance safely.

The safety comparison should therefore focus on reducing exposure to hazards, not merely removing an operator from one position.

4. Feeding Consistency and Part Quality

Manual loading depends on the operator’s ability to place each blank in the same position. Even experienced personnel can introduce small differences in orientation, timing, or alignment. These variations may cause off-center forming, uneven material flow, dimensional variation, die collisions, or rejected parts.

An automatic blank feeder uses controlled motion and defined positioning references. Servo technology can deliver repeatable travel, while alignment devices help place each blank consistently before it enters the die.

Automatic feeding can be especially valuable when:

• ◆  The blank has a defined front and back surface

• ◆  Orientation affects forming quality

• ◆  The die has a narrow loading tolerance

• ◆  Decorative or pre-coated blanks must be positioned accurately

• ◆  Multiple presses must maintain the same production standard

• ◆  Customers require stable part quality across large batches

Dual-sheet detection is another important capability. Two blanks may stick together because of oil, static electricity, burrs, or surface conditions. If both enter the die, they can cause defective parts or damage the tooling. A suitable separation and detection system helps identify this condition before feeding continues.

5. Blank Damage and Surface Protection

Manual handling can lead to dropped blanks, scratches, edge dents, fingerprints, contamination, or sliding damage between sheets. These problems are particularly important for aluminum, stainless steel, copper, pre-painted sheet, and visible appliance or automotive components.

Automatic feeding provides controlled pick-up, movement, and placement. The correct gripper or vacuum arrangement can reduce uncontrolled sliding and minimize contact with critical surfaces.

Nevertheless, an automatic feeder must be engineered for the actual material. Excessive vacuum force, an unsuitable magnetic separator, dirty suction cups, poor stack alignment, or incorrect gripping points can still damage blanks.

Before specifying the system, buyers should define:

• ◆  Blank material

• ◆  Surface finish

• ◆  Presence and type of protective film

• ◆  Lubrication condition

• ◆  Scratch-sensitive areas

• ◆  Permitted contact points

• ◆  Flatness and burr condition

• ◆  Whether blanks tend to stick together

The supplier can then select an appropriate separation method and end-of-arm tooling.

6. Flexibility and Changeover

Manual loading has an advantage in highly variable, low-volume production. An operator can often adapt quickly to a different blank shape without major mechanical changes or programming.

An automatic feeder requires suitable tooling, guides, pick-up points, and control parameters for each blank. Changeover may involve adjusting the material station, replacing grippers, modifying positioning stops, or loading a different PLC recipe.

Modern feeders can still provide considerable flexibility. A configurable system may handle square, rectangular, and round blanks, while multi-station designs allow one stack to be prepared as another is being used. This reduces replenishment downtime and supports different production requirements.

For a high-mix factory, buyers should evaluate changeover time as carefully as maximum feeding speed. Fast production has limited value if every product change requires a long setup.

7. Long-Term Return on Investment

Manual loading has a low purchase cost, but its operating cost continues for the entire life of the press line. Automatic feeding requires greater initial investment, including equipment, tooling, installation, controls, safety devices, training, and maintenance.

A useful payback calculation is:

Payback Period = Total Installed Automation Cost ÷ Net Annual Benefit

The net annual benefit may include:

• ◆  Direct labor savings or labor redeployment value

• ◆  Increased saleable output

• ◆  Reduced press waiting time

• ◆  Lower scrap and rework

• ◆  Fewer blank-handling defects

• ◆  Reduced unplanned stoppages

• ◆  More stable performance across shifts

Annual maintenance, energy, replacement cups, sensors, lubrication, and spare parts should be deducted from the expected savings.

Factories should avoid calculating ROI from theoretical maximum speed alone. The more reliable approach is to compare current production data with a realistic automated cycle, including changeovers, maintenance, stack replenishment, and planned downtime.

When Is Manual Loading the Better Choice?

Manual loading may remain the better option when:

• ◆  Production volumes are low

• ◆  Products change very frequently

• ◆  Blanks are small and lightweight

• ◆  The press cycle is slow

• ◆  Labor availability is not a constraint

• ◆  The product is still in prototype or validation

• ◆  Automation integration would cost more than the expected savings

• ◆  The factory expects the product design to change soon

In these cases, manual loading offers flexibility without committing capital to dedicated equipment.

When Should a Factory Choose an Automatic Blank Feeder?

Automatic blank feeding is usually more attractive when:

• ◆  The same parts are produced repeatedly

• ◆  Production runs across multiple shifts

• ◆  Blanks are large, heavy, sharp, or difficult to separate

• ◆  Manual feeding cannot keep pace with the press

• ◆  Positioning consistency affects part quality

• ◆  Labor shortages restrict production

• ◆  The factory wants to reduce operator exposure

• ◆  Scrap and misfeeds are increasing production cost

• ◆  The press line is being upgraded for higher output

• ◆  Management requires predictable production data

The investment becomes easier to justify when several of these conditions exist at the same time.

Choosing a Feeder for a Stamping Automation Upgrade

Before purchasing an automatic feeder, the factory should provide complete process information rather than requesting a machine based only on blank dimensions.

Important technical data includes blank shape, length, width, thickness, weight, material grade, surface condition, stack height, target production rate, press model, die height, feeding direction, required accuracy, available floor space, and factory power supply.

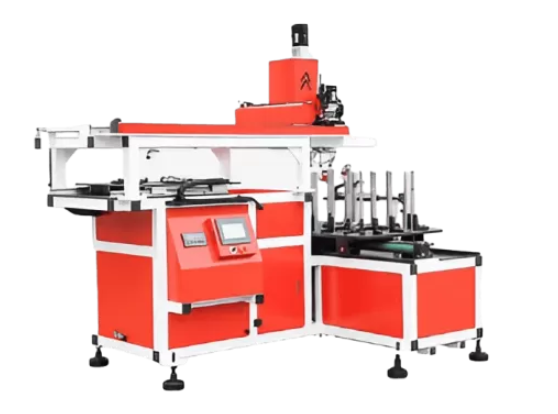

FUXIN provides automatic material feeder configurations for square and round blanks. Available options include single-, double-, four-, and six-silo designs, allowing the system to be matched to different production volumes and material-replenishment strategies.

Depending on the application, the equipment can incorporate servo-controlled feeding, hydraulic support for heavy material stacks, PLC-controlled pick-up height, stack separation, dual-sheet detection, automatic positioning, and optional oiling devices. Customization is important because the correct feeder should match the blank, press, tooling, production rhythm, and available space as one integrated process.

Conclusion

In the comparison of automatic blank feeder vs manual loading, neither method is universally suitable for every stamping factory.

Manual loading remains economical and flexible for prototypes, short production runs, lightweight blanks, and frequently changing products. Automatic blank feeding is generally better for repetitive production where labor cost, press utilization, operator safety, feeding accuracy, and consistent quality are important.

The most effective decision should be based on actual production data. Factories should measure current labor input, loading time, press waiting time, scrap, misfeeds, blank damage, and expected annual volume. These figures can then be compared with the realistic performance and total installed cost of an automatic feeding system.

For manufacturers planning a stamping automation upgrade, a correctly configured automatic blank feeder can do more than replace manual work. It can create a safer, more consistent, and more scalable production process that supports long-term manufacturing growth.
