Selecting an automatic material feeder is not simply a matter of choosing the fastest machine or the largest material magazine. The feeder must match the blank geometry, material characteristics, press cycle, die layout, required positioning accuracy, and production plan.
A structured automatic material feeder selection process helps manufacturers reduce double feeding, misalignment, unplanned press stops, excessive manual handling, and difficult product changeovers. Before requesting a quotation, buyers should evaluate the following technical factors and provide the feeder manufacturer with complete production data.
1. Start with the Shape and Size of the Metal Blank
The first step is to determine whether the feeder will handle square, rectangular, round, or irregularly shaped blanks. Blank geometry affects the magazine design, separating mechanism, pickup tooling, guide structure, and positioning method.
Square and rectangular blanks normally require reliable edge alignment and controlled orientation. The feeder must prevent the stack from shifting while ensuring that each blank enters the die in the correct direction. If the blank has unequal sides, holes, notches, or formed features, its orientation must also be identified before feeding.
Round blanks require a magazine or rack designed to keep the stack centered. Although a completely round blank may not require angular orientation, blanks with holes, slots, or other asymmetrical features still need accurate positioning.

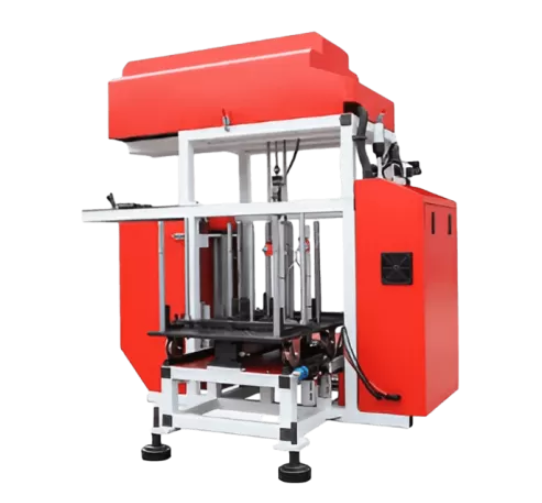

FUXIN automatic material feeders can be customized for both square and round blanks. This allows the magazine, feeding arm, positioning components, and control program to be configured according to the actual part instead of forcing different blanks into one standard structure.
Buyers should provide:
◆ A 2D or 3D drawing of the blank
◆ Maximum and minimum blank dimensions
◆ Dimensional tolerances
◆ Hole, notch, and edge details
◆ Surface condition
◆ Required feeding direction
◆ Part orientation inside the die
For factories producing multiple blank sizes, it is also important to ask how the guides and positioning components are adjusted. Tool-free adjustment, replaceable fixtures, and saved operating recipes can reduce changeover time.
2. Evaluate Material Thickness and Sheet Rigidity
Material thickness affects both blank separation and handling stability.
Thin metal sheets may stick together because of oil, static electricity, vacuum, surface tension, or burrs. If two sheets are picked up at the same time, they can damage the die, create defective parts, or stop the press. A feeder used for thin blanks should therefore include an effective stack-separation method and a reliable double-sheet detection function.
Thicker blanks create different challenges. They are generally more rigid, but they place higher loads on the feeding arm, lifting system, guides, and pickup tooling. The machine must provide enough force to separate, lift, accelerate, and position the blank without dropping it or creating excessive vibration.
Do not provide only the nominal thickness when discussing the project with a supplier. The technical specification should include:
◆ Minimum material thickness
◆ Normal production thickness
◆ Maximum material thickness
◆ Material grade
◆ Flatness tolerance
◆ Burr direction and burr height
◆ Whether sheets are dry, lubricated, coated, polished, or galvanized
FUXIN material feeding systems can include stack-separation and double-detection functions to improve feed reliability. However, the final separating method should still be selected according to the actual material. Sample testing is particularly important for thin, oily, polished, or easily scratched blanks.
3. Calculate Blank Weight and Total Stack Load
A common purchasing mistake is to consider the size of the blank without calculating its weight. The feeder must safely handle both the weight of each blank and the total load placed in the material magazine.
Individual blank weight influences the required feeding-arm payload, pickup tooling, motor capacity, acceleration, and cycle time. The effective payload must include the blank as well as the gripper, suction tooling, sensors, mounting brackets, and other end-of-arm components.
The total stack weight affects the magazine frame and material lifting system. A tall stack of relatively small parts may still create a substantial load. Buyers should specify:
◆ Weight of one blank
◆ Maximum stack height
◆ Maximum stack weight
◆ Loading method
◆ Required production time per stack
◆ Blank center of gravity
◆ Maximum distance between the magazine and press
FUXIN can provide hydraulic system support for handling heavier materials. The appropriate hydraulic and mechanical configuration should be confirmed using the heaviest blank and maximum stack load expected in actual production.
If several products will run on the same feeder, the machine should be designed around the most demanding combination of weight, size, acceleration, and reach—not merely the most frequently produced part.
4. Match Feeding Speed to the Press Cycle
The feeder must supply, separate, transfer, position, and release each blank within the available press cycle. Its advertised maximum speed is less important than its stable production speed under the actual blank weight and travel distance.
Required feed rate can be estimated by dividing the target number of good parts by the available net production time. However, the calculation should also consider:
◆ Press strokes per minute
◆ Pickup and separation time
◆ Transfer distance
◆ Blank positioning time
◆ Signal exchange with the press
◆ Material magazine changeover
◆ Operator loading time
◆ Planned breaks and maintenance
◆ Alarm recovery and rejected blanks
For example, a feeder may complete a movement quickly under no-load testing but require more time when separating oily sheets, carrying a heavy blank, and waiting for the press-ready signal. Buyers should therefore request a cycle-time calculation based on their actual application.
The feeder should also have a reasonable performance margin. Operating continuously at the machine’s absolute maximum speed may reduce process stability and leave little time for fault detection or communication with the press.
5. Select the Correct Number of Material Silos
The number of material silos, also called magazines or loading stations, affects production continuity, floor space, SKU flexibility, and operator workload.
Single-Silo Feeder
A single-silo configuration is suitable for stable, long production runs with one blank type. It normally requires less floor space and has a simpler structure. However, production may need to pause while the silo is reloaded unless another buffering method is used.
Double-Silo Feeder
A double-silo feeder can allow one station to operate while the other is prepared or replenished, depending on the system layout and safety design. It is a practical choice for manufacturers that want to reduce loading interruptions or alternate between two blank types.
Four-Silo Feeder
A four-silo system provides additional capacity for multi-product production, longer operating periods, or more frequent changeovers. It can be useful when several blank specifications are processed on the same stamping line.
Six-Silo Feeder
A six-silo configuration is designed for operations requiring greater material capacity or the management of multiple blank types. It can support high-mix production, but it also requires more floor space, more complex material scheduling, and clear controls to prevent the wrong blank from being selected.
FUXIN offers single-, double-, four-, and six-silo designs. Buyers should not automatically choose the maximum number of silos. The correct configuration should be based on batch size, changeover frequency, available floor space, loading method, and the number of part numbers scheduled on the line.
6. Define Feeding Accuracy and Repeatability
Feeding accuracy should be defined as a measurable requirement rather than described only as “high precision.”
The supplier needs to know the allowable position error in the feeding direction, lateral direction, and, where relevant, angular orientation. Buyers should also distinguish between accuracy and repeatability:
◆ Accuracy indicates how close the blank is placed to the target position.
◆ Repeatability indicates how consistently the feeder returns the blank to the same position over multiple cycles.
The required feeder tolerance depends on the die design. Some dies use locating pins or mechanical stops for final positioning, while others depend more heavily on the feeder to place the blank accurately.
When evaluating a feeder, ask whether the stated accuracy is measured:
◆ At the end of the feeding arm or at the die position
◆ Under no-load or full-load conditions
◆ At low speed or the required production speed
◆ With an ideal sample or the actual production blank
FUXIN feeders use servo motor technology to support precise and stable feeding. A PLC automatic controller can maintain a consistent pickup surface height as the stack level changes. The system can also incorporate automatic straightening or positioning functions to improve blank consistency before delivery to the press.
7. Confirm Compatibility with the Stamping Press
A feeder cannot be selected independently of the press. Mechanical, electrical, control, and safety interfaces must all be reviewed before the system design is finalized.
Important press information includes:
◆ Press type: mechanical, servo, or hydraulic
◆ Press model and tonnage
◆ Stroke rate
◆ Bed and bolster dimensions
◆ Die height and die opening
◆ Feeding direction
◆ Required transfer height
◆ Distance from the feeder to the die
◆ Available installation space
◆ Existing guards and safety devices
The control system must exchange the correct signals with the press. Typical signals may include press ready, permission to feed, feed complete, misfeed alarm, emergency stop, cycle start, fault reset, and safe position confirmation.
The supplier should also check whether the feeding arm can enter and leave the die area without interfering with the slide, tooling, guards, or other automation equipment. A layout drawing and signal list should be approved before manufacturing begins.
Safety requirements should cover interlocked guarding, maintenance access, manual or jog operation, emergency stops, and the applicable standards in the destination market.
8. Consider Separation, Detection and Oiling Requirements
Reliable automatic feeding involves more than moving a blank from the stack to the press. The system may also need to separate sheets, detect double pickup, confirm material presence, maintain the pickup height, position the blank, and apply lubricant.
FUXIN feeders can incorporate:
◆ Stack-separation functions
◆ Double-detection capability
◆ PLC-controlled pickup height
◆ Automatic straightening or positioning
◆ Optional oiling devices
◆ A feeding arm for direct delivery of positioned blanks
The required functions depend on the material and stamping process. For example, pre-coated appliance panels may require non-marking contact surfaces, while automotive stampings may require controlled oil application. Electronics blanks may prioritize compact dimensions and positioning accuracy.
These requirements should be identified during the selection stage because adding them after the machine has been built may affect the layout, controls, and cycle time.
Why Consider a Customized FUXIN Material Feeding System?
FUXIN develops material feeding solutions for metal stamping applications in automotive manufacturing, electronics, home appliances, and mechanical engineering. Its automatic material feeder can be configured for square or round blanks and is available with single-, double-, four-, or six-silo arrangements.
Servo-driven feeding, PLC-controlled stack-height management, heavy-material support, separation, detection, positioning, and optional oiling functions can be combined according to the material type and production process. This customized approach is especially valuable when a standard feeder cannot accommodate the required blank shape, stack capacity, press interface, or changeover method.
Final Selection Advice
The best automatic feeder is not necessarily the model with the highest speed, payload, or number of silos. It is the system that can handle the complete blank range, maintain the required cycle time, position each blank consistently, communicate correctly with the press, and allow operators to load and change materials safely.
Before approving an order, define measurable acceptance criteria for cycle time, pickup success rate, double-sheet detection, placement repeatability, changeover time, and fault recovery. A well-planned automatic material feeder selection process will result in a more stable stamping line, lower dependence on manual handling, and better long-term production efficiency.
