Custom Progressive Die Tooling for Multi-Station Metal Stamping
FUXIN provides custom automotive progressive stamping dies designed for multi-station metal forming operations.
Our progressive die assemblies incorporate precision guide pillar systems and cam-driven mechanisms to support accurate die alignment and stable stamping performance.
Progressive dies are suitable for components requiring multiple operations within a continuous stamping process, including piercing, blanking, bending and forming.
In addition to stamping die manufacturing, FUXIN provides automated feeding systems and stamping automation equipment to support integration between tooling and production equipment.
Key Features of Our Progressive Stamping Dies
Precision Guide Pillar System

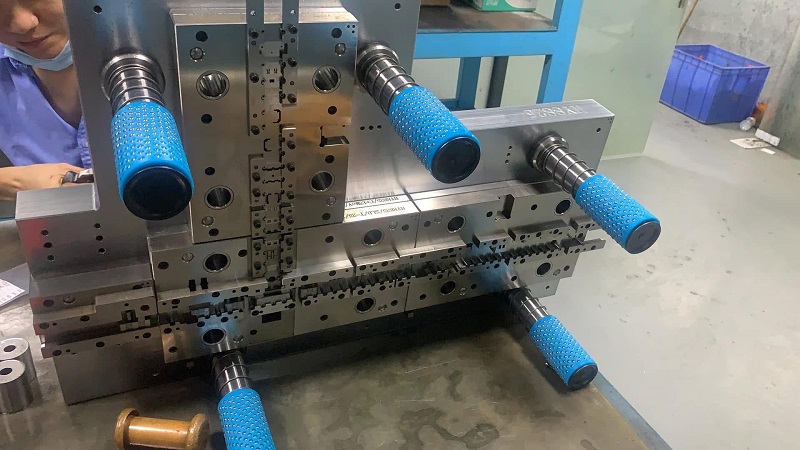

Guide pillar structures help maintain accurate alignment between the upper and lower die assemblies.
Proper guidance supports dimensional consistency and stable tooling operation during repeated stamping cycles.
Cam-Driven Mechanisms
Cam-driven structures can support forming operations requiring movement in directions other than the main press stroke.
They provide additional flexibility for manufacturing automotive components with complex geometries.
Multi-Station Forming
Progressive dies allow multiple operations to be performed sequentially as a continuous metal strip moves through the tooling.
This arrangement can reduce intermediate handling and improve production efficiency for suitable components.
Custom Tooling Configuration
Die structure, station layout and tooling dimensions are developed according to component geometry, material specifications and production requirements.
Progressive Stamping Die Applications
Progressive stamping dies are commonly used for manufacturing:
Automotive brackets
Metal mounting components
Automotive reinforcement parts
Precision sheet metal components
Other multi-operation stamped parts
The appropriate tooling configuration depends on part complexity, material thickness, production volume and dimensional requirements.
Progressive Die Manufacturing and Inspection
CNC Machining

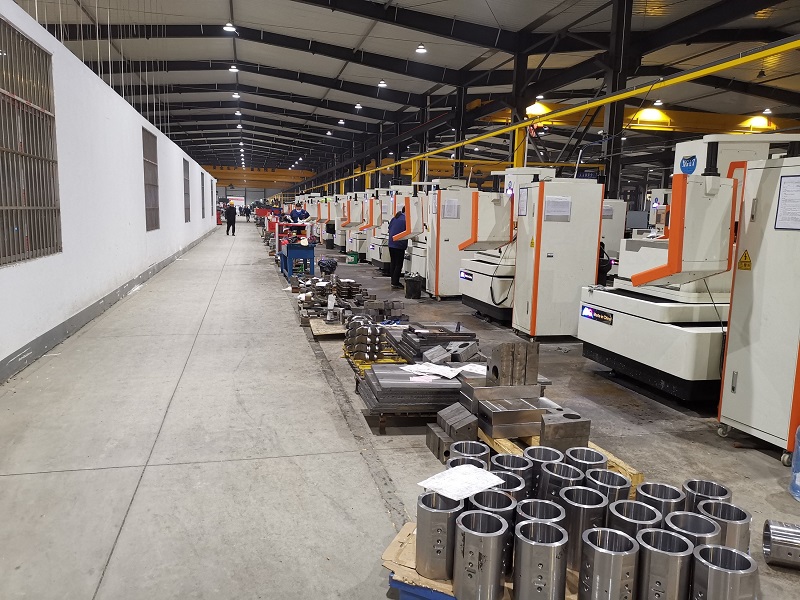

FUXIN uses large gantry CNC machining centers to manufacture stamping die surfaces and die bases.
Dimensional Inspection

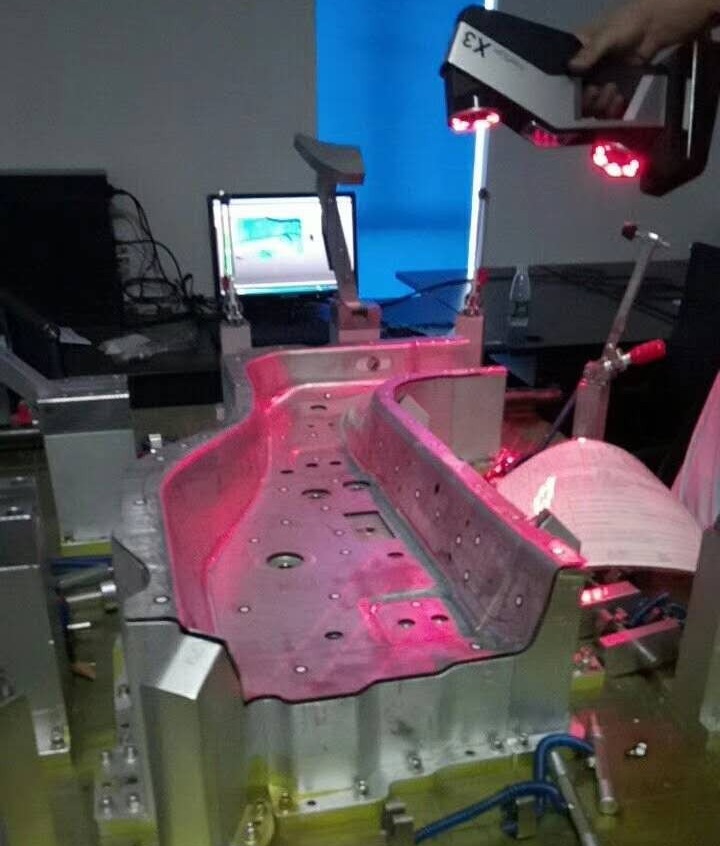

Blue-light 3D scanning technology is used to inspect die surfaces and stamped components against CAD models.
Die Tryout and Acceptance
FUXIN provides tooling tryout support, on-site acceptance and remote video-based reviews to assist customers during tooling validation.
Progressive Dies and Automated Feeding Integration
Progressive stamping requires consistent material feeding and coordination between the die and stamping press.
FUXIN provides automated feeding equipment that can be integrated into stamping production lines according to material specifications and press requirements.
For new production projects, we can discuss solutions combining progressive dies, stamping presses, feeding equipment and auxiliary systems.
For existing production lines, feeding equipment and automation configurations can be evaluated according to current operating conditions.
Custom Progressive Stamping Die Specifications
Tooling specifications are determined according to each project.
| Parameter | Customization Information |
|---|
| Die Type | Progressive Stamping Die |
| Application | Automotive and Industrial Metal Parts |
| Die Structure | Guide Pillar and Cam-Driven Structures |
| Forming Operations | Piercing, Blanking, Bending and Forming |
| Die Dimensions | According to Customer Drawings |
| Material Requirements | According to Component Specifications |
| Press Compatibility | Based on Press Specifications |
| Inspection | Dimensional Inspection and 3D Scanning |
Frequently Asked Questions
What is a progressive stamping die?
A progressive stamping die is a multi-station tool that performs a sequence of metal forming and cutting operations as a continuous strip advances through the die.
Can progressive stamping dies be customized?
Yes. FUXIN provides custom progressive stamping dies based on component drawings, material specifications and production requirements.
Can FUXIN integrate progressive dies with automatic feeders?
FUXIN provides automatic feeding systems and stamping automation solutions. Integration requirements can be evaluated according to the die, press and production process.
What information is required for a quotation?
Please provide component drawings, material grade, sheet thickness, production volume and press specifications.
Request a Quote for Progressive Stamping Dies
Looking for custom progressive stamping dies for automotive metal components?
Contact FUXIN with your drawings and technical requirements to discuss your tooling project.
[Request a Quote]
