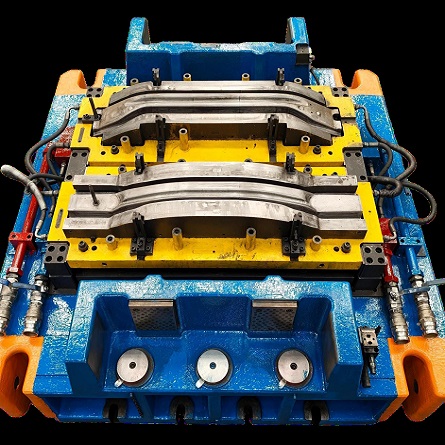

Automotive Hot Stamping Dies

Custom Hot Forming Dies for High-Strength Automotive Steel Components

FUXIN provides custom automotive hot stamping dies for manufacturing high-strength steel components used in vehicle body structures.

Our hot forming dies incorporate in-die cooling and venting systems to support controlled forming and quenching during the hot stamping process.

These tooling solutions are suitable for automotive applications requiring high component strength, dimensional consistency and complex forming geometries.

FUXIN supports hot stamping die projects with CNC machining, tooling assembly, dimensional inspection and die tryout services.

Key Features of Our Hot Stamping Dies

Integrated In-Die Cooling

Cooling systems are incorporated into the die structure to remove heat from formed steel components during the quenching stage.

Cooling channel configuration depends on component geometry, material properties and forming requirements.

Forming and Quenching

Hot stamping combines the forming of heated steel blanks with controlled cooling inside the die.

This process is widely used for producing high-strength automotive structural components.

Venting System Design

Venting features help manage trapped air during forming and support consistent contact between the steel blank and die surfaces.

Complex Automotive Component Forming

Hot stamping dies can be developed for automotive parts with complex geometries and demanding structural requirements.

Automotive Hot Stamping Applications

Hot stamping is commonly used for manufacturing high-strength automotive body components.

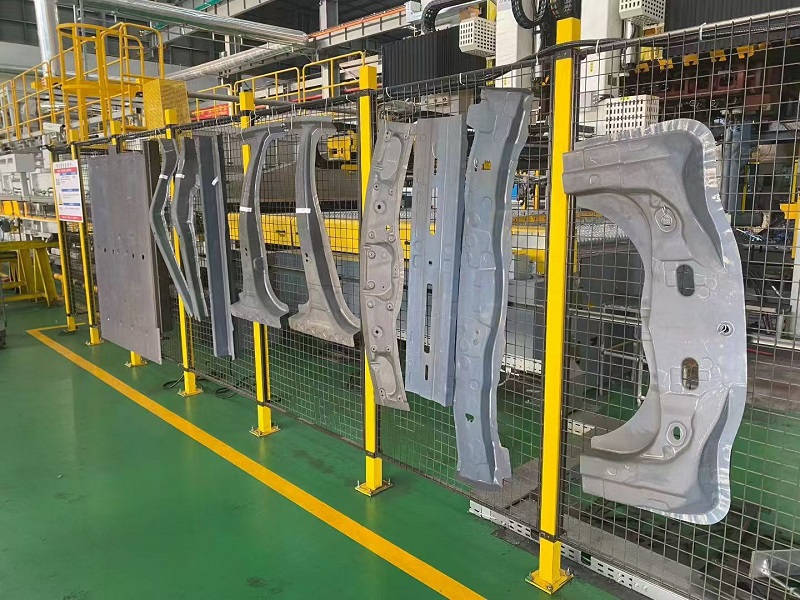

Rocker Panels

Hot-stamped rocker panel components are used in vehicle side structures where strength and crash performance are important.

Body Reinforcement Components

High-strength steel reinforcement parts help support vehicle body rigidity and structural performance.

Automotive Safety Structures

Hot stamping is suitable for selected safety-related automotive structures requiring high material strength.

Hot Stamping Die Manufacturing Capabilities

CNC Machining

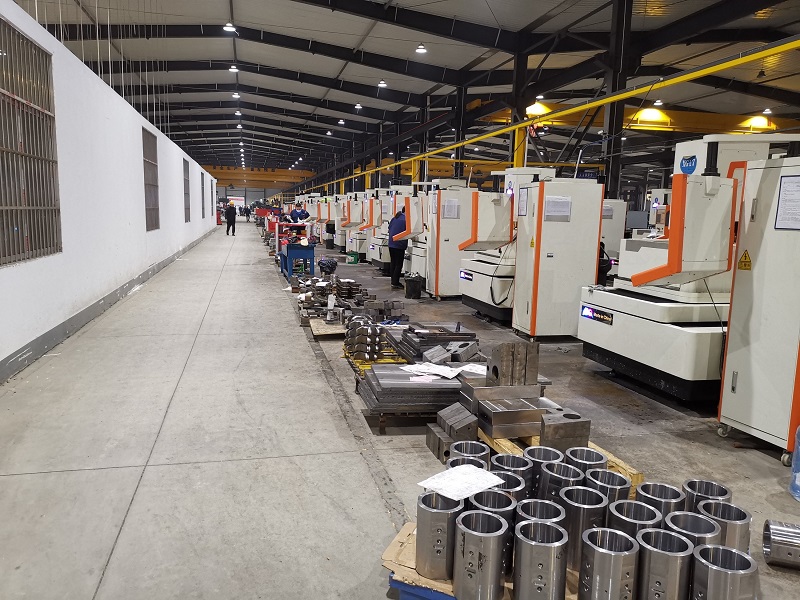

Large gantry CNC machining centers are used to manufacture die surfaces and die bases.

Hot Forming Production Line Resources

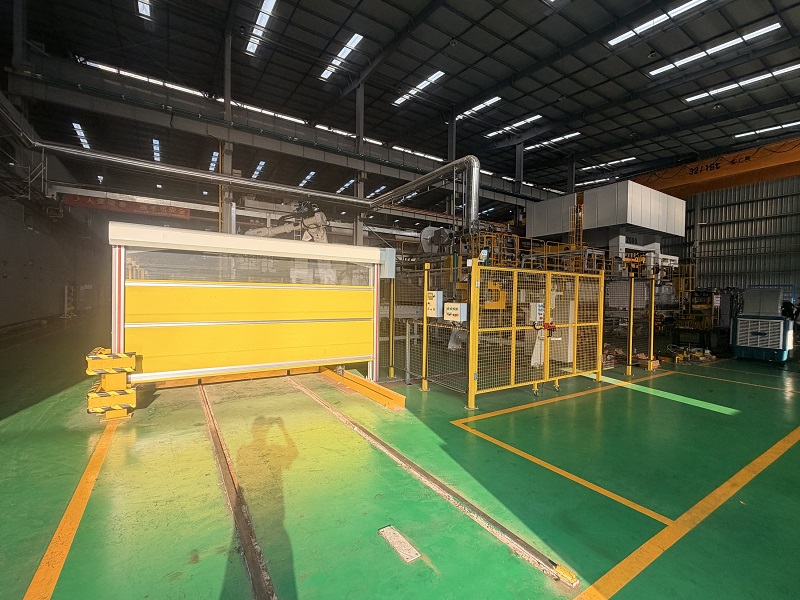

FUXIN's project materials include hot forming production line equipment involving heating furnaces, presses and automated transfer systems.

These resources support tooling-related production evaluation and process validation.

Dimensional Inspection

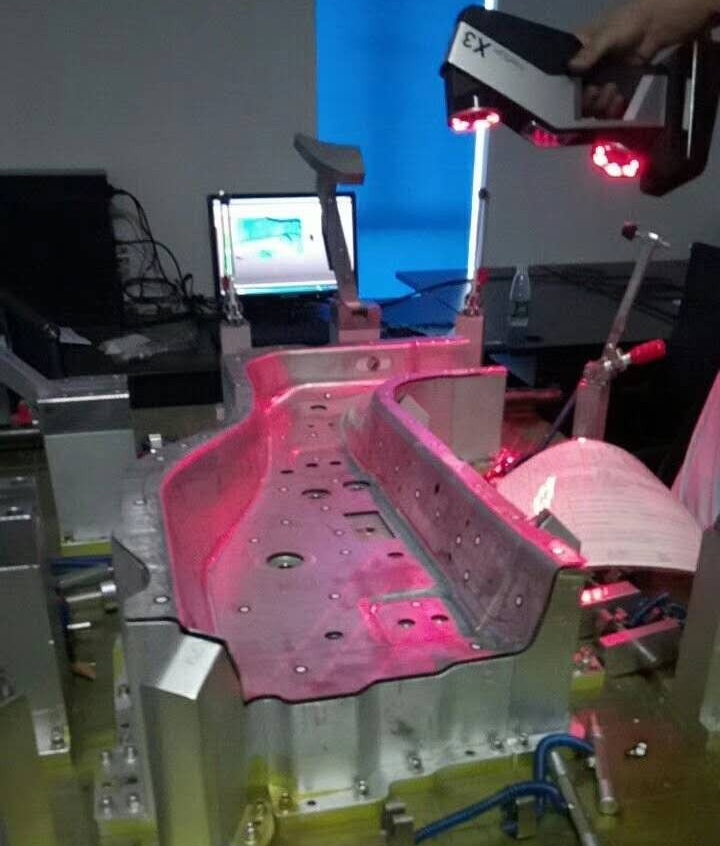

Blue-light 3D scanning is used to inspect die surfaces and formed components against CAD models.

Custom Hot Stamping Die Specifications

Frequently Asked Questions

What is a hot stamping die?

A hot stamping die is a forming tool used to shape heated metal sheets while supporting controlled cooling during the press-hardening process.

What is the purpose of in-die cooling?

In-die cooling helps control the temperature reduction of the formed component and supports the material transformation required for press-hardened steel.

What automotive components use hot stamping dies?

Typical applications include rocker panels, body reinforcements and other high-strength automotive structural components.

Can FUXIN manufacture customized hot stamping dies?

Yes. FUXIN provides custom hot stamping dies according to customer drawings, material specifications and production requirements.

Does FUXIN provide tooling inspection and tryout support?

Yes. FUXIN provides dimensional inspection, die tryout support and tooling acceptance services.

Request a Quote for Hot Stamping Dies

Looking for custom hot stamping dies for high-strength automotive components?

Send FUXIN your component drawings, material specifications and production requirements to discuss your tooling project.
