Custom Transfer Die Tooling for Large Automotive Panels and Structural Components
FUXIN provides custom automotive transfer stamping dies for manufacturing large and complex sheet metal components.
Our transfer dies incorporate rigid cast die bases and support multi-stage operations such as drawing, trimming and piercing.
These tooling solutions are suitable for automotive body panels, battery-related structural components and other formed metal parts.
In addition to stamping die manufacturing, FUXIN provides industrial robots, transfer systems and customized auxiliary equipment to support automated material handling between stamping operations.
Key Features of Our Transfer Stamping Dies
Rigid Cast Die Base
Our transfer stamping dies incorporate cast die bases designed to support large tooling structures and forming operations.
Multi-Stage Forming Operations
Transfer stamping dies can combine multiple manufacturing operations, including:
Drawing
Forming
Trimming
Piercing
Flanging
The actual process sequence depends on component geometry and manufacturing requirements.
Tooling for Large Automotive Components
Transfer dies are suitable for selected large automotive panels and structural components requiring multiple forming stages.
Custom Die Design
Tooling structure and dimensions are developed according to customer drawings, material properties and production equipment requirements.
Automotive Transfer Die Applications
Automotive Body Panels
Transfer stamping dies can be used to manufacture large automotive body panels requiring drawing, trimming and piercing operations.
Battery-Related Structural Components
Transfer tooling can support manufacturing selected battery-related metal components, including formed enclosure covers and structural parts.
Automotive Chassis Components

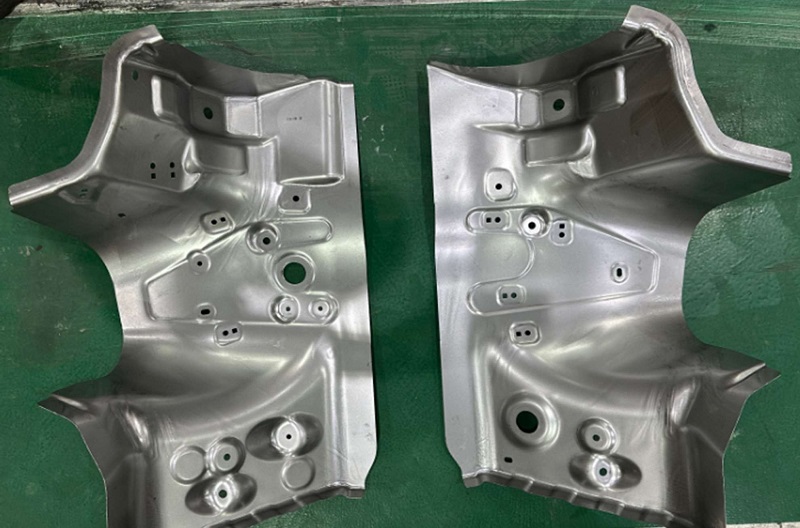

Depending on component design and production requirements, transfer dies can be used for selected chassis and structural components.
Transfer Stamping Dies and Robotic Automation
Transfer stamping operations require reliable movement of workpieces between forming stations.
FUXIN provides industrial robots and transfer automation equipment that can be integrated with stamping presses and tooling.
Complete Automated Transfer Stamping Lines
For new production line projects, FUXIN can provide integrated solutions combining:
Stamping presses
Transfer stamping dies
Industrial robots
Material feeding systems
Intermediate transfer stations
Workpiece turnover mechanisms
Other customized auxiliary equipment
The system configuration depends on component dimensions, transfer requirements, press specifications and production targets.
Existing Stamping Line Automation Upgrades
For existing stamping lines, FUXIN provides automation upgrade solutions involving robotic transfer systems and auxiliary equipment.
These upgrades can help reduce manual handling and improve coordination between stamping operations.
[IMAGE 4 — Robotic Transfer Stamping Line]
Suggested image: FUXIN robotic transfer system between stamping presses
ALT: Automated transfer stamping line with industrial robots and stamping presses
Transfer Stamping Die Manufacturing Capabilities
CNC Machining

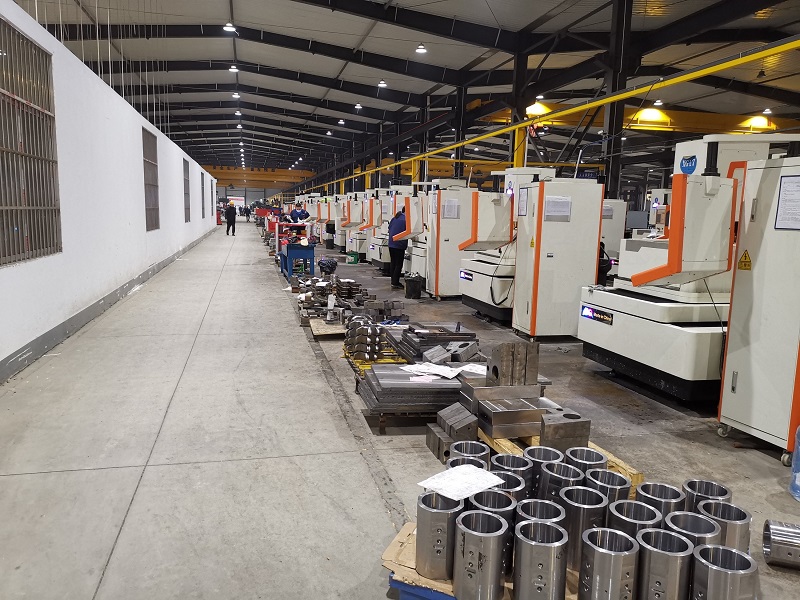

Large gantry CNC machining centers support the manufacture of die surfaces and die bases.
Large Die Assembly

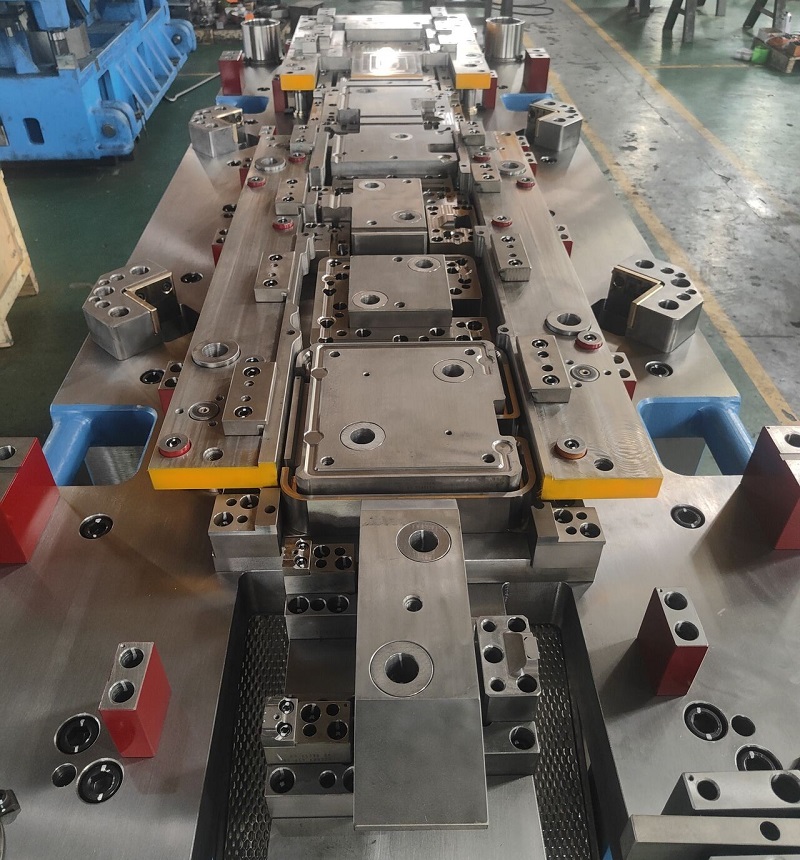

FUXIN's manufacturing resources include tooling assembly areas and lifting equipment for medium and large stamping dies.
Dimensional Inspection

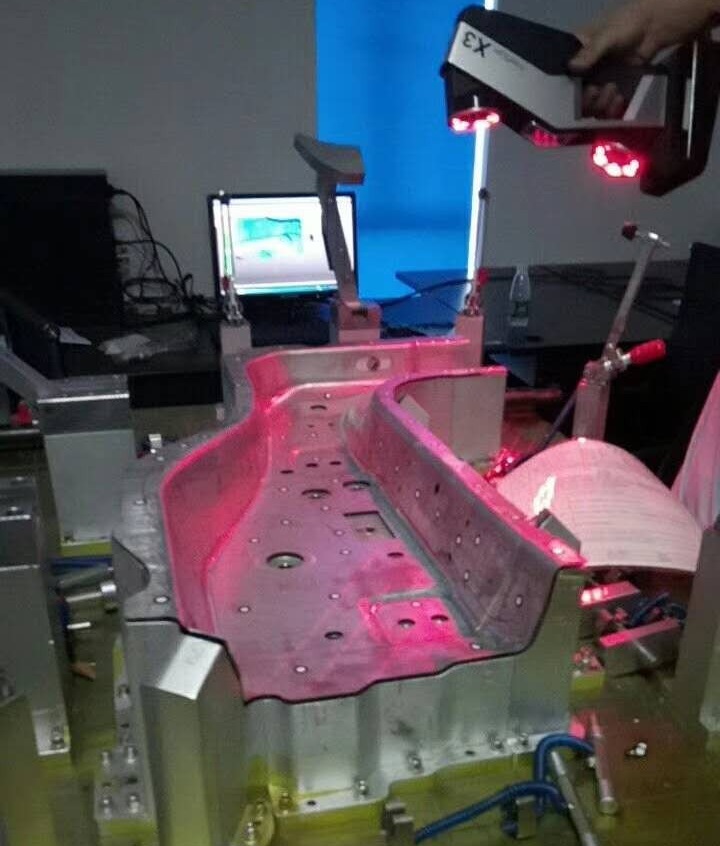

Blue-light 3D scanning technology is used to inspect tooling surfaces and formed components against CAD models.
Custom Transfer Stamping Die Specifications
| Parameter | Customization Information |
|---|
| Die Type | Transfer Stamping Die |
| Application | Automotive Panels and Structural Components |
| Die Structure | Cast Die Base |
| Forming Operations | Drawing, Trimming, Piercing and Forming |
| Die Dimensions | According to Customer Drawings |
| Press Compatibility | According to Press Specifications |
| Transfer System | Customized According to Production Requirements |
| Inspection | 3D Scanning and Dimensional Verification |
Frequently Asked Questions
What is a transfer stamping die?
A transfer stamping die is a tooling system used to manufacture metal components through multiple operations, with individual workpieces transferred between forming stations.
What is the difference between progressive dies and transfer dies?
Progressive dies process a continuous metal strip through successive stations, while transfer dies move individual blanks or partially formed components between stations.
Can transfer stamping dies be integrated with industrial robots?
Yes. FUXIN provides industrial robots and transfer automation equipment. Integration requirements can be evaluated according to the tooling, press layout and production process.
Can FUXIN upgrade an existing transfer stamping line?
Yes. FUXIN provides robotic transfer and auxiliary equipment solutions for existing stamping production lines.
What information is needed for a transfer die quotation?
Please provide component drawings, material specifications, forming requirements, press information and estimated production volume.
Request a Quote for Transfer Stamping Dies
Looking for custom automotive transfer stamping dies or an automated transfer stamping solution?
Contact FUXIN with your drawings and production requirements to discuss your tooling and automation project.
