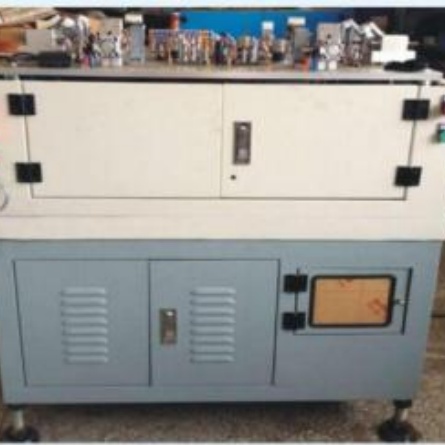

Horizontal Servo Tapping Machine

Function: Designed for workpieces requiring tapping on the side or at specific angles. The horizontal spindle layout solves lateral threading challenges that vertical machines cannot handle. The machine is designed for convenient tool replacement and maintenance, helping manufacturers reduce unnecessary interruption during continuous production.

Features: Compact footprint makes it suitable for integration into automated production lines. The servo control system offers fast response times, and tool changing and maintenance are convenient, significantly improving the efficiency of side-hole processing.

Application Scenarios: Computer chassis, AI server enclosures, and frame components requiring side-hole or angled threading operations.

Servo Tapping Machine Supporting Equipment, Fixtures, and Accessories

·55-inch LED TV Back Panel Tapping Fixture

·42-inch All-in-One TV Back Panel Tapping Fixture

· Small Size In-Mold Reverse Tapping Machine

·Back Panel Thread Hole Inspection Machine

·Back Panel Thread Hole Inspection Fixture

·Lower Tapping Mechanism

·Tapping Machine Gearbox

Functions, Features, and Compatible Models of Servo Tapping Machine Supporting Equipment, Fixtures, and Accessories

No.	Product Name	Category	Functions & Features	Image
1	55-inch LED TV Back Panel Tapping Fixture	Fixtures	*Functions & Features: A dedicated fixture designed for large-size TV back panels. It can accurately position and secure the workpiece in one go, working with the tapping machine to simultaneously process dozens or even hundreds of threaded holes. Made of high-strength materials to ensure stability and durability during high-speed machining. *Compatible Models: Mainly compatible with Vertical Servo Tapping Machines or Multi-spindle Modular Tapping Machines.
2	42-inch All-in-One TV Back Panel Tapping Fixture	Fixtures	*Functions & Features: Custom-designed according to the hole pattern of 42-inch all-in-one TV back panels, enabling quick clamping and precise positioning. The fixture has a compact structure that effectively avoids interference during processing, ensuring the perpendicularity and accuracy of each threaded hole. *Compatible Models: Mainly compatible with Vertical Servo Tapping Machines.
3	Small Size In-Mold Reverse Tapping Machine	Specialized Equipment	*Functions & Features: A highly automated specialized equipment that can automatically reverse the workpiece inside the mold to achieve continuous tapping on different sides of the workpiece. It requires no manual intervention, greatly improving the processing efficiency and safety of small, complex parts. *Compatible Models: Used as an independent specialized machine or integrated into an automated stamping production line.
4	Back Panel Thread Hole Inspection Machine	Testing Equipment	*Functions & Features: Used for quality inspection after the tapping process. It can automatically detect defects such as missing holes, stripped threads, and incorrect hole diameters. Equipped with a visual operation interface, and inspection data is traceable, effectively preventing defective products from proceeding to the next process. *Compatible Models: As an independent testing equipment, compatible with all production lines that have completed the tapping process.
5	Back Panel Thread Hole Inspection Fixture	Fixtures	*Functions & Features: Used in conjunction with the thread hole inspection machine to precisely position and hold the back panel workpiece to be inspected. The probes or locating pins on the fixture correspond one-to-one with the product holes, ensuring the accuracy and repeatability of the inspection process. *Compatible Models: Exclusively for Back Panel Thread Hole Inspection Machines.
6	Lower Tapping Mechanism	Accessories	*Functions & Features: An accessory module that performs tapping from underneath the workpiece, solving the problem of bottom or specific-angle threaded holes that cannot be processed by traditional top-tapping methods. It has a compact structure and can be flexibly integrated into various types of automated equipment or fixtures. *Compatible Models: As a core accessory, compatible with Horizontal Servo Tapping Machines or customized automated production lines.
7	Tapping Machine Gearbox	Accessories	*Functions & Features: The core transmission component of the tapping machine, responsible for accurately transmitting the power from the servo motor to the spindle. It uses high-precision gears and high-quality lubricating oil to ensure smooth transmission, low noise, and long service life, which is a key guarantee for achieving high-precision tapping. *Compatible Models: As a core accessory, compatible with all models of Servo Tapping Machines.

All above products are our core products and can be customized according to customer requirements.

Horizontal Tapping in Automated Stamping Lines

For high-volume sheet metal manufacturing, side-hole tapping can be incorporated directly into the automated production process rather than handled as a separate manual operation.

A typical process can include:

Material Feeding → Stamping → Workpiece Transfer → Horizontal Tapping → Thread Inspection

FUXIN can configure the tapping station according to the customer's workpiece structure, tapping direction and production-line layout.

Lower Tapping Mechanism for Additional Tapping Directions

For workpieces requiring threaded holes from underneath or at positions that cannot be reached by conventional top tapping, FUXIN also provides a Lower Tapping Mechanism.

The compact modular unit can be integrated with Horizontal Servo Tapping Machines or customized automated production lines, extending the available tapping directions for more complex enclosure and mechanical components.

Horizontal vs. Vertical Servo Tapping Machine

Choose a Horizontal Servo Tapping Machine when threaded holes are located on the side or require a specific processing orientation. For flat components requiring tapping from the upper surface, a Vertical Servo Tapping Machine is generally more suitable.
