Function:
Designed for flat workpieces, performing high-precision threading operations via a vertical spindle. Ideal for automated tapping of products like TV back panels and monitor stands.

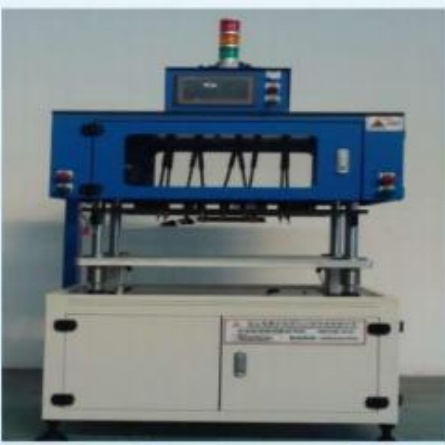

Key Features of the Vertical Servo Tapping Machine
Features: Driven by a servo motor for precise control over tapping depth and speed. Its robust structure ensures stable operation, effectively guaranteeing thread quality and yield rates.
Servo-Controlled Tapping: Servo motor drive allows the tapping depth and speed to be controlled according to the processing requirements, supporting repeatable thread machining in automated production.
Vertical Processing for Flat Workpieces: bThe vertical spindle configuration is designed for threaded holes located on the upper surface of flat components, making it suitable for sheet metal panels, back plates and similar stamped parts.
Stable Machine Structure: The robust machine structure supports stable operation during repeated tapping cycles, helping maintain consistent thread processing in mass-production environments.
Suitable for Automated Stamping Lines: The machine can be incorporated into automated stamping production processes, reducing the need to move stamped parts to separate manual tapping stations.
Custom Fixture Compatibility: Fixtures can be developed according to the workpiece dimensions and hole layout to support accurate positioning and repeatable loading.
Application Scenarios:
TV back panels, monitor stands, and other flat-panel products requiring high-precision threaded hole machining in automated stamping lines.
Servo Tapping Machine Supporting Equipment, Fixtures, and Accessories
◆ 55-inch LED TV Back Panel Tapping Fixture
◆ 42-inch All-in-One TV Back Panel Tapping Fixture
◆ Small Size In-Mold Reverse Tapping Machine
◆ Back Panel Thread Hole Inspection Machine
◆ Back Panel Thread Hole Inspection Fixture
◆ Lower Tapping Mechanism
◆ Tapping Machine Gearbox
Functions, Features, and Compatible Models of Servo Tapping Machine Supporting Equipment, Fixtures, and Accessories
| No. | Product Name | Category | Functions & Features | Image |
| 1 | 55-inch LED TV Back Panel Tapping Fixture |
Fixtures | *Functions & Features:
A dedicated fixture designed for large-size TV back panels. It can accurately position and secure the workpiece in one go, working with the tapping machine to simultaneously process dozens or even hundreds of threaded holes. Made of high-strength materials to ensure stability and durability during high-speed machining.
*Compatible Models:
Mainly compatible with Vertical Servo Tapping Machines or Multi-spindle Modular Tapping Machines. |   |
| 2 | 42-inch All-in-One TV Back Panel Tapping Fixture | Fixtures |
*Functions & Features:
Custom-designed according to the hole pattern of 42-inch all-in-one TV back panels, enabling quick clamping and precise positioning. The fixture has a compact structure that effectively avoids interference during processing, ensuring the perpendicularity and accuracy of each threaded hole.
*Compatible Models:
Mainly compatible with Vertical Servo Tapping Machines. |  |
| 3 |
Small Size In-Mold Reverse Tapping Machine |
Specialized Equipment | *Functions & Features:
A highly automated specialized equipment that can automatically reverse the workpiece inside the mold to achieve continuous tapping on different sides of the workpiece. It requires no manual intervention, greatly improving the processing efficiency and safety of small, complex parts.
*Compatible Models:
Used as an independent specialized machine or integrated into an automated stamping production line. |  |
| 4 | Back Panel Thread Hole Inspection Machine | Testing Equipment | *Functions & Features:
Used for quality inspection after the tapping process. It can automatically detect defects such as missing holes, stripped threads, and incorrect hole diameters. Equipped with a visual operation interface, and inspection data is traceable, effectively preventing defective products from proceeding to the next process.
*Compatible Models:
As an independent testing equipment, compatible with all production lines that have completed the tapping process. |  |
| 5 | Back Panel Thread Hole Inspection Fixture | Fixtures | *Functions & Features:
Used in conjunction with the thread hole inspection machine to precisely position and hold the back panel workpiece to be inspected. The probes or locating pins on the fixture correspond one-to-one with the product holes, ensuring the accuracy and repeatability of the inspection process.
*Compatible Models:
Exclusively for Back Panel Thread Hole Inspection Machines. |  |
| 6 | Lower Tapping Mechanism | Accessories | *Functions & Features:
An accessory module that performs tapping from underneath the workpiece, solving the problem of bottom or specific-angle threaded holes that cannot be processed by traditional top-tapping methods. It has a compact structure and can be flexibly integrated into various types of automated equipment or fixtures.
*Compatible Models:
As a core accessory, compatible with Horizontal Servo Tapping Machines or customized automated production lines. |  |
| 7 | Tapping Machine Gearbox | Accessories |
*Functions & Features:
The core transmission component of the tapping machine, responsible for accurately transmitting the power from the servo motor to the spindle. It uses high-precision gears and high-quality lubricating oil to ensure smooth transmission, low noise, and long service life, which is a key guarantee for achieving high-precision tapping.
*Compatible Models:
As a core accessory, compatible with all models of Servo Tapping Machines. |  |
All above products are our core products and can be customized according to customer requirements.
How Vertical Tapping Fits into an Automated Stamping Line
For manufacturers producing stamped sheet metal parts in high volumes, tapping is often required after the forming process. The Vertical Servo Tapping Machine can be configured as part of an automated production workflow to reduce secondary manual handling.
A typical production process may include:
Material Feeding → Stamping → Workpiece Transfer → Vertical Tapping → Thread Inspection
FUXIN can evaluate the tapping station together with the surrounding feeding, transfer and inspection processes according to the customer's production line layout.
FAQ:
What parts are suitable for a vertical servo tapping machine?
It is suitable for flat workpieces with threaded holes processed vertically from the upper surface, such as TV back panels, monitor stands and similar stamped sheet metal parts.
Can the machine be integrated into an automated stamping line?
Yes. The machine is designed for automated production applications and can be configured according to the customer's stamping and workpiece-transfer process.
Can FUXIN provide a custom fixture?
Yes. Dedicated tapping fixtures can be developed according to workpiece dimensions and hole patterns.
When should I choose a horizontal instead of a vertical tapping machine?
A vertical machine is suitable when threaded holes are processed from the upper surface. For side holes or threaded holes at specific orientations, a Horizontal Servo Tapping Machine is generally more suitable.
